Ultrasonic Cleaning Gears and Transmission Parts: Oil, Chips & Drying Guide

Why gear and transmission parts need a controlled cleaning process

Machined gears, shafts, splines and transmission housings can carry cutting oil, grinding fluid, lapping compound, metal fines and handling residue. Contamination left between teeth or inside oil passages can interfere with inspection and subsequent assembly. Ultrasonic cleaning can help dislodge accessible contamination when the part, chemistry and process are compatible. It is not a substitute for dimensional inspection, deburring or a specified final cleanliness test.

For manufacturers and maintenance workshops in the United States and Southeast Asia, the right question is not simply whether a tank can remove grease. It is whether the complete cleaning, rinsing, drying and handling process produces a repeatable result without affecting the gear's finish, protective treatment or required lubrication.

Which components are suitable for ultrasonic cleaning?

Typical candidates for evaluation include disassembled steel gears, machined pinions, shafts, spacers, metal housings and compatible metal brackets. Every application requires a material and finish check. Hardened surfaces, precision-ground tooth flanks, phosphate coatings, plated finishes, porous sintered components and assemblies containing seals or bearings can impose additional restrictions. Consult the part drawing, coating supplier and cleaning-chemical manufacturer before processing critical components.

Do not immerse a complete gearbox or pre-lubricated sealed assembly merely because individual metal parts might tolerate immersion. Cleaning can remove intended lubricants, trap water in inaccessible spaces or expose sensitive nonmetallic parts to unsuitable chemicals. Disassembly and a documented re-lubrication procedure may be necessary.

Identify the soil before choosing a detergent

Machining oil and grease need a chemistry capable of emulsifying or separating the particular lubricant. Metal chips and abrasive fines may be loosened by cavitation but still require effective bath management, basket handling and sometimes filtration. Polishing compounds can contain binders that respond differently from ordinary cutting fluid. Oxide scale or rust is a separate problem: aggressive removal chemistry may damage a finish and should not be treated as routine ultrasonic degreasing.

For many compatible metal parts, an aqueous industrial cleaner is a practical starting point. Choose the concentration, water quality and operating temperature according to the detergent supplier's instructions and the component's material restrictions. Avoid assuming that a stronger solution or hotter bath is always better. Never place flammable solvents directly in a standard ultrasonic tank unless the entire equipment and process are specifically designed and approved for that use.

A practical seven-step cleaning workflow

1. Inspect and segregate the parts

Record alloy, surface treatment, dimensions, soil type and cleanliness requirement. Separate delicate finished gears from heavy rough-machined parts. Remove loose swarf by an appropriate pre-cleaning method where practical, so large particles do not accumulate in the bath or scratch precision surfaces.

2. Select the basket and loading pattern

Suspend components in a suitable basket or fixture rather than resting them on the tank floor. Keep finished tooth flanks from striking neighboring parts. Do not overload the basket; leave paths for solution exchange around gear teeth, keyways, bores and recesses. For parts with trapped air, use an orientation that allows bubbles to escape.

3. Prepare and degas the solution

Mix the approved detergent with the specified water quality. Follow the cleaner supplier's guidance on bath preparation and temperature. If the machine offers a degas function, use it as instructed before evaluating the cleaning cycle. Degassing helps establish consistent cavitation but does not correct an unsuitable detergent or overcrowded basket.

4. Run a documented trial cycle

Start with a small, representative sample rather than a full production batch. Record frequency, power setting, bath temperature, detergent concentration, exposure time, basket load and orientation. Evaluate the result and adjust one variable at a time. A 40 kHz machine can be a useful starting point for many robust metal-part applications, but the appropriate frequency and energy depend on contamination, geometry and finish sensitivity.

5. Rinse according to the residue requirement

A detergent that removes oil may leave a film if rinsing is inadequate. Determine whether a single rinse, staged rinses or controlled-quality final rinse is required by the downstream process. Use compatible water and a verified rinse method. A visible clean surface is not necessarily a residue-free surface.

6. Dry promptly and protect against corrosion

Remove water from tooth roots, cross-holes, splines and cavities with a validated drying method such as clean filtered air and controlled heating where compatible. Unprotected ferrous parts can develop flash rust after aqueous cleaning. If the next operation requires a rust preventive, apply one approved for the assembly or coating process. Do not use uncontrolled high-pressure air on parts that can retain hazardous debris.

7. Inspect and document acceptance

Use the acceptance method appropriate to the job: visual inspection, wipe testing, gravimetric residue measurement, particle extraction or a customer-specified cleanliness test. Check that dimensions, coating appearance and surface condition remain acceptable. Record the approved process window so later batches can be compared.

How to choose an ultrasonic cleaner for gears

Tank volume alone is not a sufficient selection criterion. Measure the largest gear and its basket, including clearance for fluid circulation. Consider the combined weight of the load, number of parts per batch, heating needs, frequency options, control functions and how the parts will be transferred to rinsing and drying. Heavy gears may require a lifting fixture or a customized basket; larger production volumes may justify a multi-stage system.

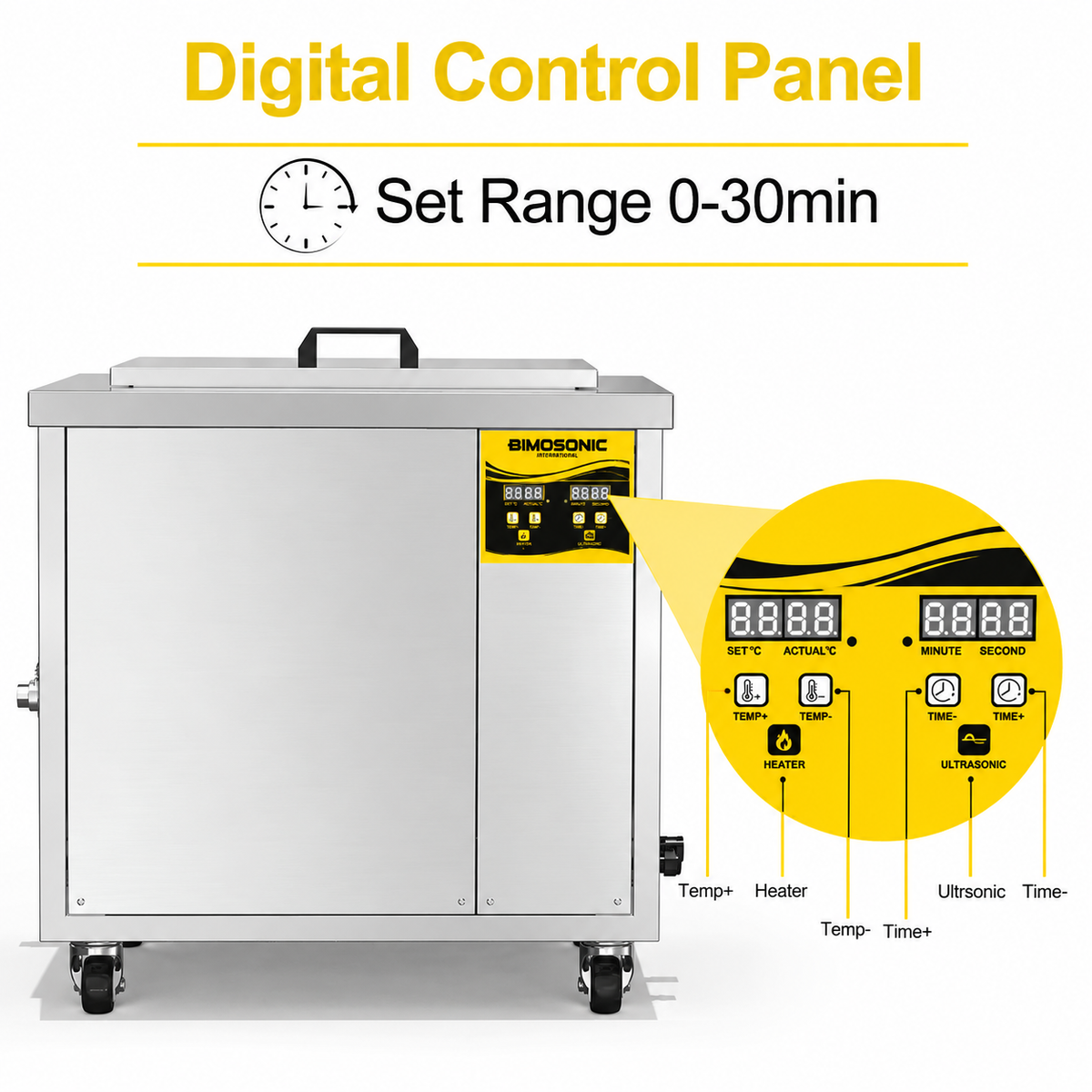

BIMOSONIC lists a 10L–30L industrial ultrasonic cleaner family with 10L, 15L, 22L and 30L variants, and a 30L professional ultrasonic cleaner. These are comparison starting points, not guarantees that a particular gear fits or that a target cleanliness level will be achieved. Confirm usable tank dimensions, basket load, material compatibility and actual configuration before ordering.

For larger or higher-throughput applications, explore the industrial parts washer collection and custom cleaning systems. An engineering review can help determine whether filtration, a lift, staged rinsing or a separate drying stage is warranted.

Common problems and corrective checks

Oil remains in tooth roots: check the detergent's compatibility with the lubricant, part orientation, bath loading and actual exposure of recessed surfaces. White residue appears after drying: examine rinse quality, detergent carryover and dissolved minerals. Flash rust appears: shorten wet hold times and review drying and corrosion protection. New marks appear on gear faces: inspect basket contact, part-to-part collision, chemical attack and whether the selected cycle is too aggressive.

If cleaning results deteriorate over time, track bath contamination, solution concentration, filtration condition and change-out criteria. Repeating a longer cycle in a depleted bath can increase processing time without resolving the underlying issue.

Frequently asked questions

Can ultrasonic cleaning remove grease from gear teeth?

It can assist with removal of compatible grease and oil when the detergent and cycle are matched to the contamination. Run a trial and verify the cleanliness result; heavy deposits may need pre-cleaning.

Is ultrasonic cleaning safe for hardened or coated gears?

Safety depends on the alloy, coating, surface finish, chemistry and ultrasonic conditions. Validate on representative samples and obtain approval for critical or coated components rather than assuming every gear is suitable.

Should cleaned gears always be rinsed?

Follow the detergent instructions and downstream cleanliness specification. Some processes need a controlled final rinse to prevent chemical or mineral residue; others use a chemistry designed for a different post-cleaning sequence.

What size tank should I choose for transmission parts?

Choose based on the largest part plus fixture clearance, total basket load and throughput—not nominal liters alone. Confirm internal dimensions and handling requirements with the equipment supplier.

Can I clean a fully assembled transmission?

Do not assume so. Seals, lubricated bearings, trapped liquid and incompatible materials can make immersion unsuitable. Seek the assembly manufacturer's approved maintenance process.

Request a gear-cleaning equipment quotation

Share the gear material and coating, largest part dimensions, maximum basket weight, oil or particle type, required cleanliness level and parts-per-hour target. BIMOSONIC can review whether a standard benchtop/industrial unit or a customized cleaning line is the more appropriate starting point. Request a custom ultrasonic cleaning system quotation or contact the BIMOSONIC team.

Process note: This guide provides general selection and trial-planning information. Always validate cleaning chemistry and cycle conditions for the specific component and follow equipment and chemical safety instructions.
